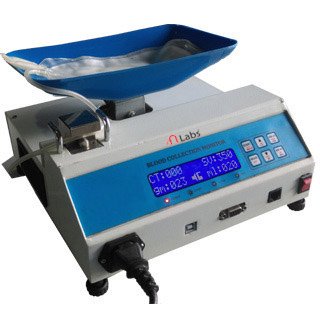

Blood Collection Monitor

In Stock

BRAND – mLabs

  • Facility for Manual Weight Calibration
  • Auto weight Calibration
  • Display value in Vol and Grams
  • RPM Settable from 1 to 50 RPM
  • Real Time Clock
  • Date and Time
  • Battery Backup for 50 Hours continuous operation of Blood Collection Monitor
  • Large LCD Display
  • Audio and Video Alarms
  • Display Indication – LED based
  • RS232 Ports




Technical Specifications of Blood collection Monitor:

Input Voltage 90-280 VAC 50/60 Hz
Operation cycle Continues Operation with Intermittent Loading
Power consumption 12W (Max)
Working Environment
Temperature 0° to 50°C
Relative Humidity 25 to 95%
Atm Pressure 650 to 1080hPa
Battery Full Charge Battery 50 hours continuous operation blood collection monitor
Storing and Transportation Temperature -20° to 50°C
Relative Humidity 20 to 99%
Atm Pressure: 650 to 1080hPa
Oscillation details 50± 1 rpm, motor driven oscillation. Adjustable for 1 to 50 RPM
Clamping Mode Automatic and Manual tube Clamping. Automatic clamping when the preset volume is achieved after collection
Volume Setting Insteps of 1 ml. Automatic storage of previous set volume. Continuous display of set and current volume
Auto Tare The Blood collection Monitor calibrates automatically each time when the Start Button is pressed
Alarms/Indications LCD and LED indication with audible alarm when there is no Blood flow. LCD and  LED indication with audible alarm at the end of collection.
Display Large Display:  16×2 line character Backlit LCD display
Time Measurement The time of collection is shown at the end of every collection.There is also display of time during collection
Accuracy 1% of the programmed volume
Dimension in mm Height:140mm; length:250mm; width: 250mm
Weight 4.8 kg. only weight of blood collection monitor
Battery rechargeable 12V, 2.3 AH Sealed Maintenance free lead acid  battery
RTC Real Time Clock
Time setting Display on the main screen and editable
Date Setting Display on the main screen and editable
RPM RPM setting of motor from 0 to 50
RS 232 RS 232 port for extraction of data from BCM to Computer
